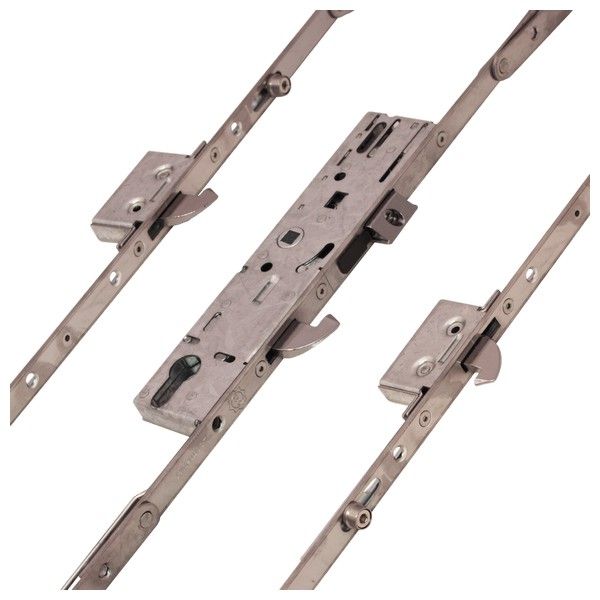

Yale Doormaster - Prof.16mm FP (MPL104/MPL105)

Yale Doormaster Professional is a High Security replacement lock designed to replace 100% of locks with top and bottom hooks or bolts a 35m or 45mm backset and a 16mm or 20mm faceplate. Designed with the professional installer in mind this lock includes Crop and Mate technology to maximise the scope of installation. Severa l patented features plus the variety of faceplate widths makes the Professional Lock the ideal choice where a higher level of security is required - regardless of door material.Professional:  3 Hook / 2 Roller.  Supplied with universal keeps. For use on UPVC doors.

• PZ Lock Centre:  92mm
• Faceplate:  16mm
• Operation: Split Spindle (S/S)
• Spindle:  1
• Case Heigh t: 215mm
• Case Width: 50mm/60mm
• Shootbolt Compatible:  No

Measurements: (Taken from centre of spindle except Overall Length)

Overall Len gth: n/a

Top Hook: 385mm to 820mm

Top Roller: 485mm to 920mm

Bottom Hook: 408mm to 845mm

Bottom Roller: 508mm to 945mm

The product also meets Secured by Design's 'Police Preferred Specification' that demonstrates it has undergone rigorous testing to a relevant British Standard.

Secured by Design is the official Police security initiative with the licence held by Yale.
