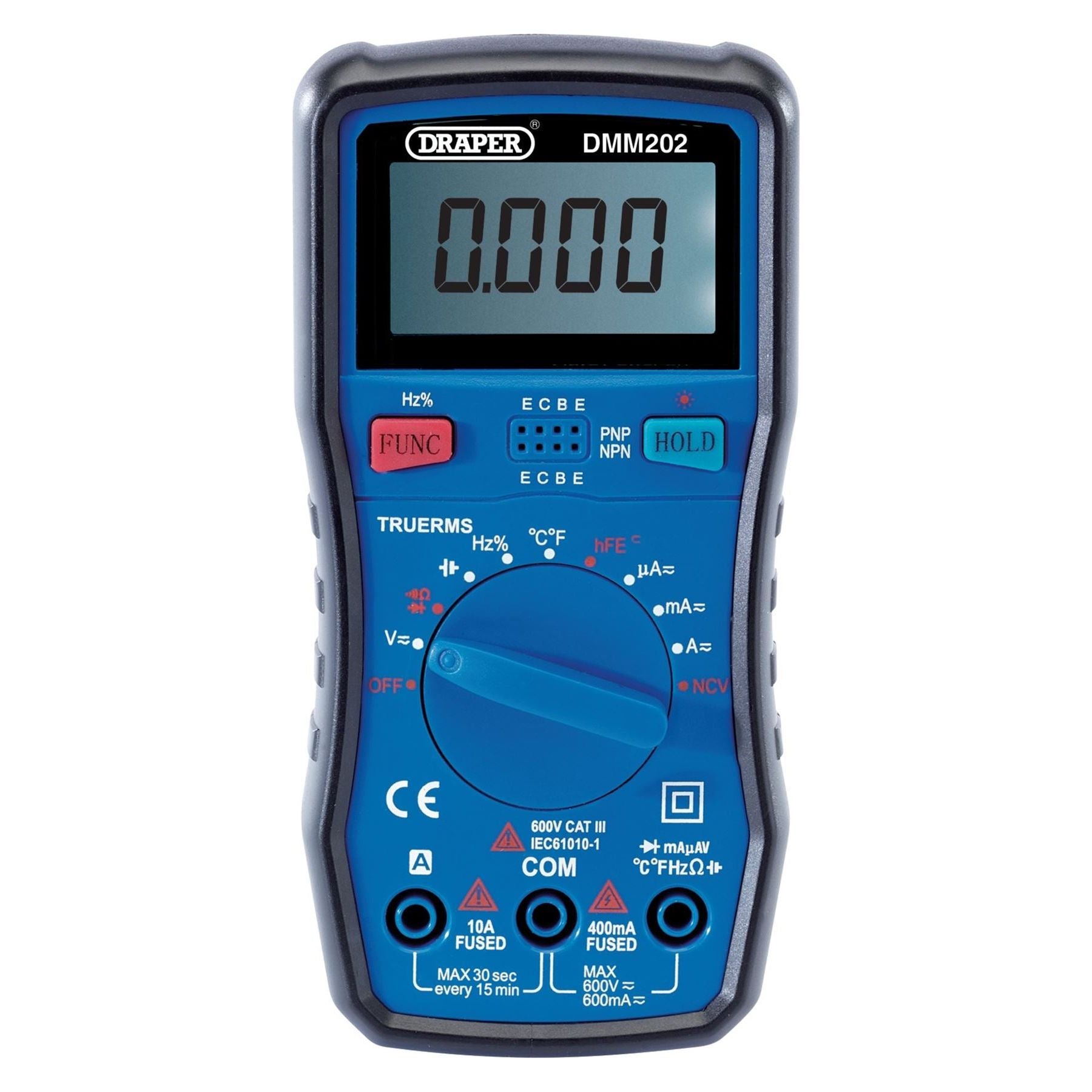

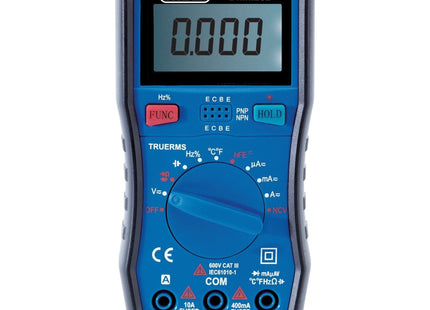

Draper Auto-Ranging Digital Multimeter, 1 x Test Leads, 1 x Temp Probe 41820 Draper - Town Tools

Draper Auto-Ranging Digital Multimeter, 1 x Test Leads, 1 x Temp Probe 41820

by Draper
SKU 41820-DRA
£39.49 - £39.49
£39.49
£39.49 - £39.49
£39.49
Availability:
in stock, ready to be shipped

Est Delivery 3 - 7 Working Day

Downloads

41820-DRA Declaration of Conformity CE.pdf PDF 41820-DRA Declaration of Conformity UKCA.pdf PDF 41820-DRA Document.pdf PDF 41820-DRA Instructions.pdf PDF
Shipping information


We work hard to get your order out quickly and securely.

  • Fast Dispatch – Orders are processed promptly once placed.
  • Trusted Couriers – We use reliable delivery partners.
  • Clear Costs – Shipping is calculated at checkout, based on size and weight.
  • Peace of Mind – We’ll keep you updated every step of the way.
Returns & warranty
  • 28 Days to Return – If it’s not right, just bring it back in its original condition.
  • Quick Refunds – Once we’ve checked your return, we’ll refund you promptly.
  • Clear & Fair – Some items (like cut-to-size or opened packaging) can’t be returned, but we’ll always let you know upfront.

Auto ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non contact voltage testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe and 1 x 6F22 9V battery.

Specifications

AC Current: 600µA/6000uA/60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 6F22 9V
Capacitance: 10nF/100nF/1μF/10μF/100μF/1000mF/10mF/100mF
DC Current: 600µA/6000uA/60mA/600mA/6A/10A
DC Voltage: 600mV/6V/60V/600V
Dimensions: 172mm x 174mm x 50mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -50℃ - 1000℃/-58℉ - 1832℉
Weight: 361g (approx.)
