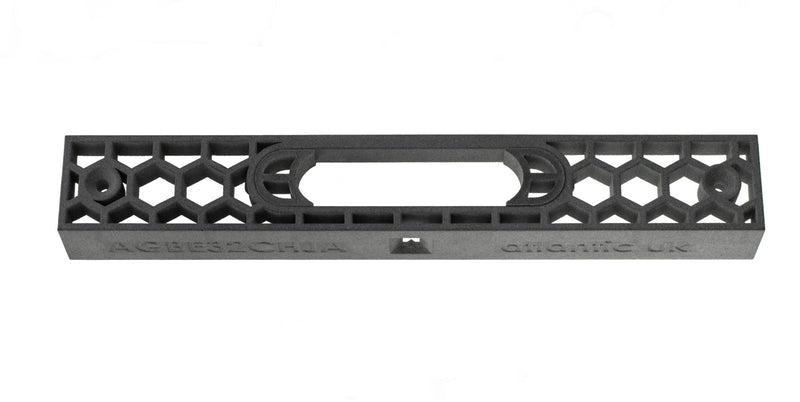

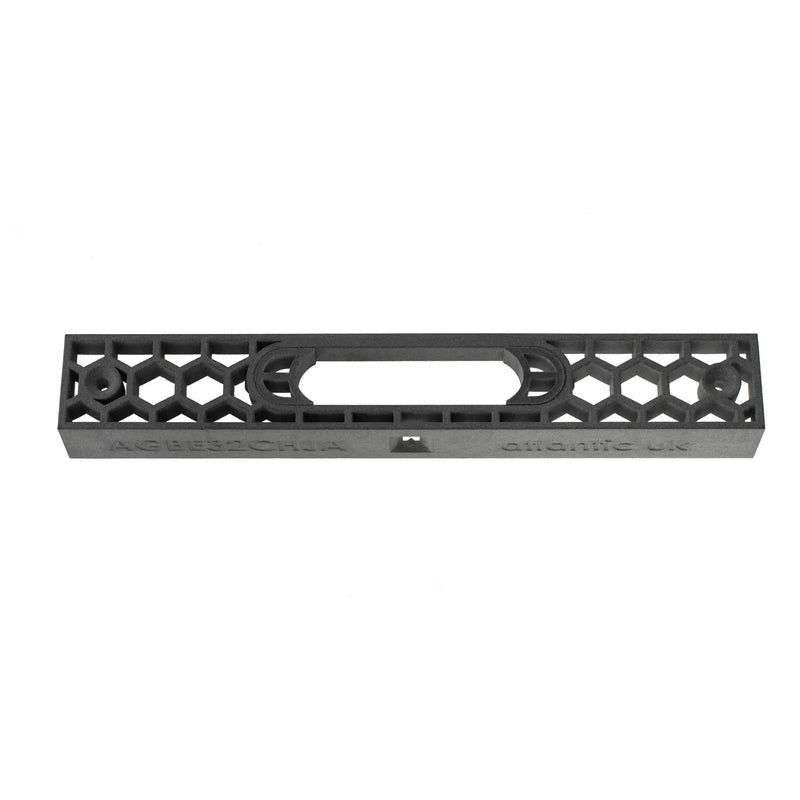

Atlantic UK AGB Single Jig for Eclipse 3.2 Concealed Hinges - 3D Printed Item

Atlantic UK AGB Single Jig for Eclipse 3.2 Concealed Hinges - 3D Printed Item

Manufactured using additive manufacturing with nylon PA12. If damaged by the router bit, it can be repaired using a two-part wood filler, while also ensuring no damage occurs to the router bit itself.

No Finish finish: We recommend use of a top bearing guided router bit, E.g. Trend C121BX1/4TC, and drill out to full depth with a 22mm Forstner/ None self-feeding spade pit, and then cleanup with a chisel as needed.

Features

• Comes with the jig and 2 inserts.
• Atlantic UK recommends this is only used on new doors and door frames. Suitable for doors that are 35mm and upwards, and with frame rebates that are not more than 12mm deep.
• Suitable for doors that are 35mm and upward, and with frame rebates that are no more than 12mm deep.

Specifications

• Brand: Atlantic
• Range: AGB
• Style: Eclipse 3.2 Concealed
• Finish: No Finish
• Material: Plastic
• Type: Hinge Jigs
• Pack/UOM: Each
• EAN: 5056314632388
