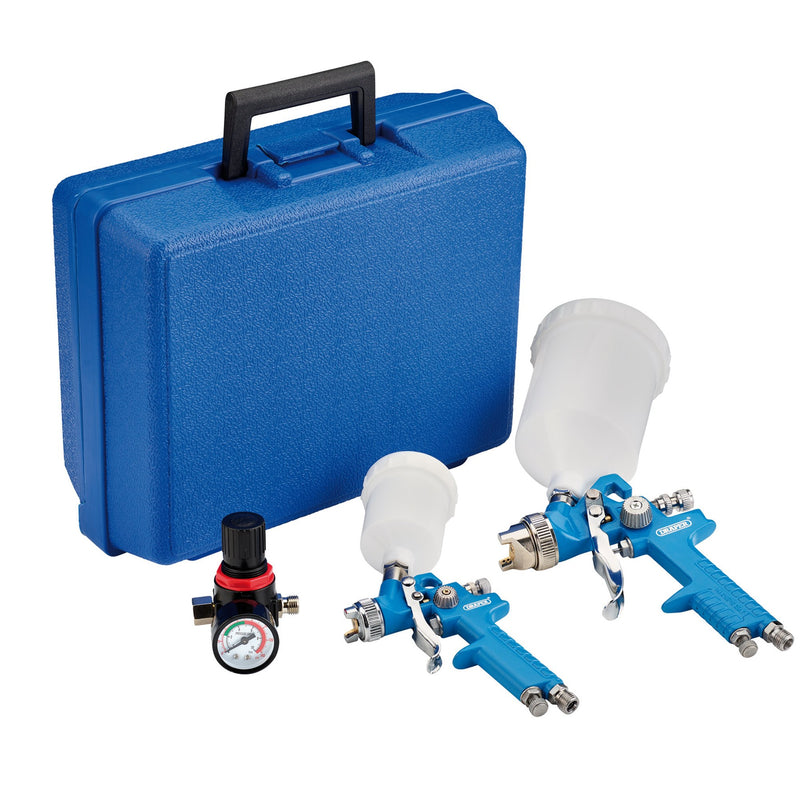

Draper 28374 HVLP Air Paint Spray Gun Kit (7 Piece)
Draper 28374 HVLP Air Paint Spray Gun Kit (7 Piece)

Draper 28374 HVLP Air Paint Spray Gun Kit (7 Piece)

Shop All Draper
SKU 28374-DRA
£45.99 - £45.99
£45.99
£45.99 - £45.99
£45.99
Availability:
1+ in stock, ready to be shipped

Est Delivery 3 - 7 Working Day

Shipping information


We work hard to get your order out quickly and securely.

  • Fast Dispatch – Orders are processed promptly once placed.
  • Trusted Couriers – We use reliable delivery partners.
  • Clear Costs – Shipping is calculated at checkout, based on size and weight.
  • Peace of Mind – We’ll keep you updated every step of the way.
Returns & warranty
  • 28 Days to Return – If it’s not right, just bring it back in its original condition.
  • Quick Refunds – Once we’ve checked your return, we’ll refund you promptly.
  • Clear & Fair – Some items (like cut-to-size or opened packaging) can’t be returned, but we’ll always let you know upfront.

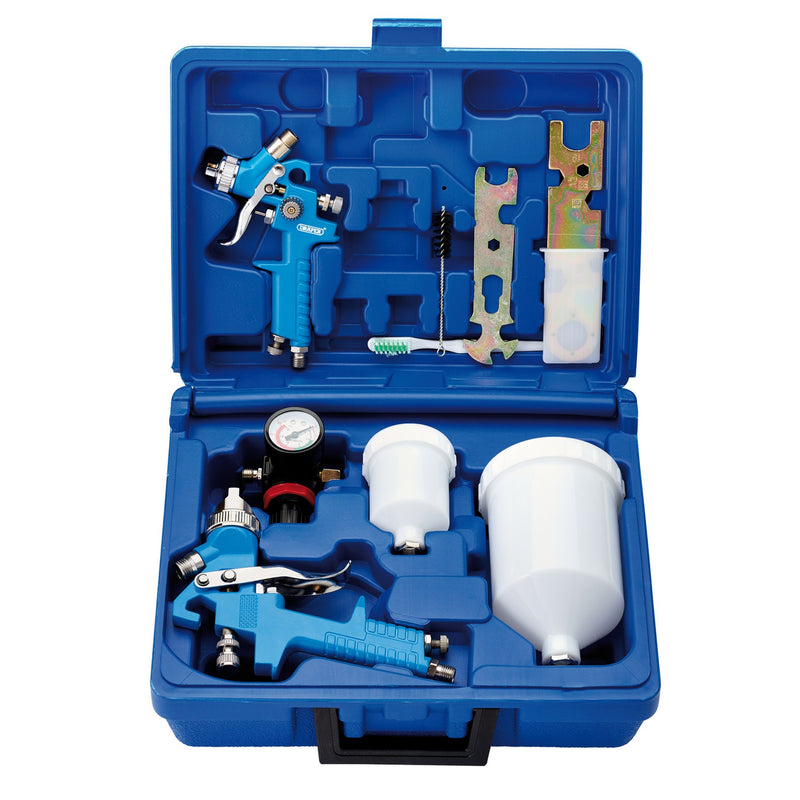

This HVLP air spray gun kit is designed for use with receiver compressors. It includes two HVLP spray guns - 0.8 and 1.4mm with capacities 125 and 600ml. Made from lightweight aluminium, the guns have an adjustable spray pattern and the variable fan position helps ensure maximum paint transfer efficiency with minimal bounce back. There is a 1/4" BSP adaptor with a dual reading display gauge (psi/bar). Supplied with a large and small spanner, plus white and black cleaning brushes.

Features

  • Two HVLP spray guns - 0.8mm with 125ml plastic cup and 1.4mm with 600ml plastic cup
  • Lightweight aluminium housing
  • Variable fan position
  • Adjustable flow control
  • Includes 1/4" BSP adaptor with dual reading display gauge (psi/bar)
  • Supplied with large and small spanner, plus white and black cleaning brushes

Specifications

Capacity 125/600ml
Nozzle 0.8/1.4mm
Operating air pressure 29psi/50psi
Air inlet 1/4" BSP
Max inlet pressure 140psi
Gauge 33mm (diameter)

Dimensions & Weight

Weight 2.375 kg
Length 322 mm
Width 256 mm
Height 130 mm

Standards & Warranty

  • 12 months warranty

Part No: DAT-HASGK7
Barcode: 5059482046643
