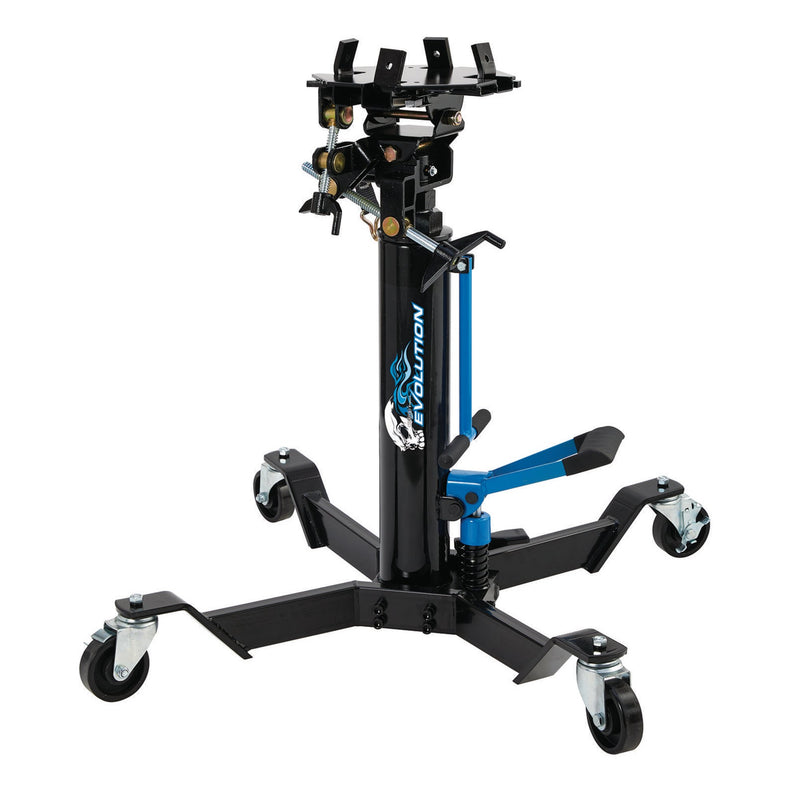

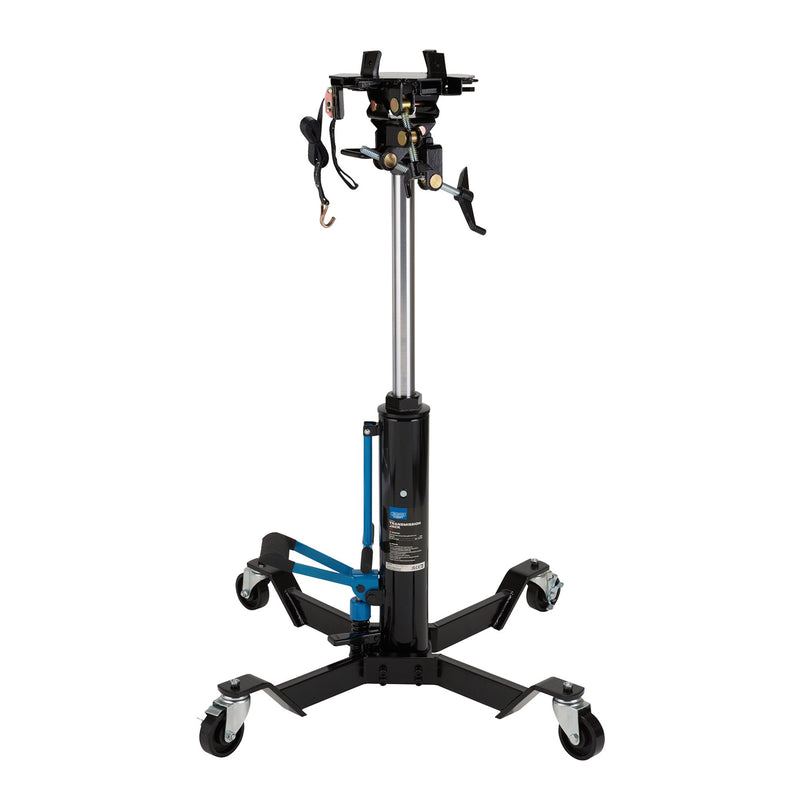

Draper 08557 Draper Expert Evolution Vertical Transmission Jack, 500kg
Draper 08557 Draper Expert Evolution Vertical Transmission Jack, 500kg

Draper 08557 Draper Expert Evolution Vertical Transmission Jack, 500kg

Shop All Draper
SKU 08557-DRA
£830.49 - £830.49
£830.49
£830.49 - £830.49
£830.49
Availability:
1+ in stock, ready to be shipped

Est Delivery 3 - 7 Working Day

Shipping information


We work hard to get your order out quickly and securely.

  • Fast Dispatch – Orders are processed promptly once placed.
  • Trusted Couriers – We use reliable delivery partners.
  • Clear Costs – Shipping is calculated at checkout, based on size and weight.
  • Peace of Mind – We’ll keep you updated every step of the way.
Returns & warranty
  • 28 Days to Return – If it’s not right, just bring it back in its original condition.
  • Quick Refunds – Once we’ve checked your return, we’ll refund you promptly.
  • Clear & Fair – Some items (like cut-to-size or opened packaging) can’t be returned, but we’ll always let you know upfront.

This vertical transmission jack is part of the stylish and distinctive Evolution range. Telescopic twin stage ram with a low entry height for reduced clearances. Operated by foot pedal for easy hands-free operation. Fully adjustable saddle able to accept a wide range of components. Has forward, backward and side-to-side tilting action to aid the user further. Ratchet saddle claws enhance the operating speed when clamping the load. There are two non-marking ratchet straps for added support. Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation. The side mounted T-handle further aids positioning and manoeuvrability. Fitted with overload safety valve. Fully tested and certified for safe, reliable operation. Capacity 500kg.

Features

  • Telescopic twin stage ram with a low entry height for reduced clearances
  • Foot pedal for easy hands-free operation
  • Fully adjustable load saddle with ratchet retaining strap
  • Forward, backward and side-to-side tilting action
  • Non-marking ratchet straps for added support
  • Extra-large 100mm castors prevent damage to floors and provide a quieter and smoother operation
  • Side mounted T-handle aids positioning and manoeuvrability

Specifications

Capacity 500kg
Minimum height 902mm
Maximum height stage 1 1,387mm
Maximum height stage 2 1,891mm
Saddle type Adjustable
Base dimensions 290 x 290mm
Castor diameter 100mm
Weight 66kg

Dimensions & Weight

Weight 68.500 kg
Length 1000 mm
Width 610 mm
Height 325 mm

Standards & Warranty

  • 12 months warranty

Part No: TJ500EVO
Barcode: 5059482058905
